Project case

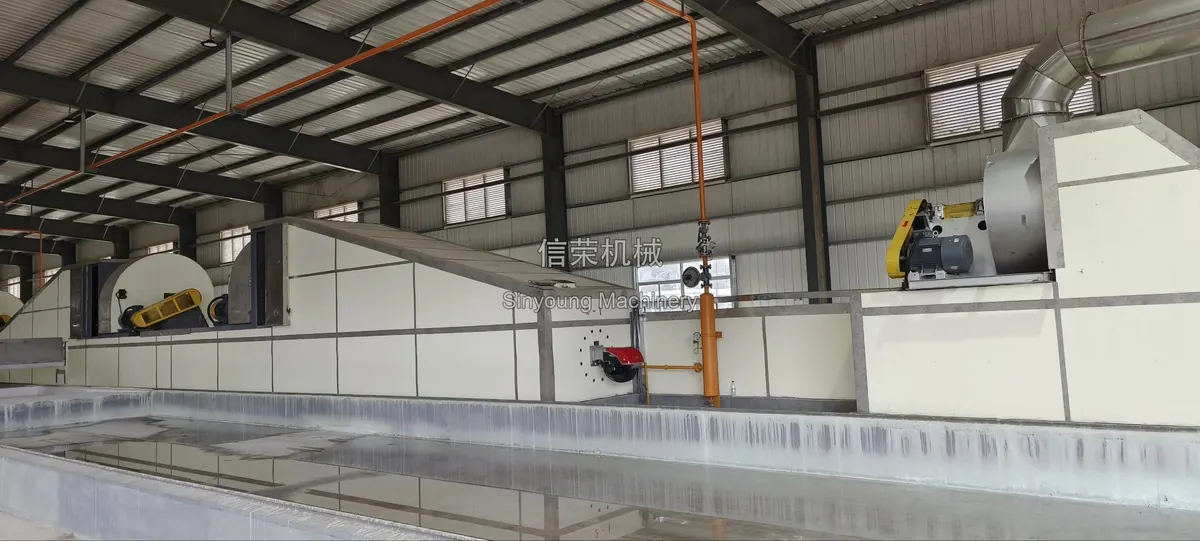

Mainland Group Côte d’Ivoire Plant 3 Natural Rubber Line Project

San-Pédro, Côte d’Ivoire

Mainland Group Plant 3 in San-Pédro uses two complete Sinyoung TSR 10/20 natural rubber production lines. Both lines operate at a 330-second trolley interval, with actual capacity reaching 5.24 t/h per line.

Mainland Group Côte d’Ivoire Plant 3 Natural Rubber Line Project

2 linesComplete TSR Lines

5 t/hDesign Capacity per Line

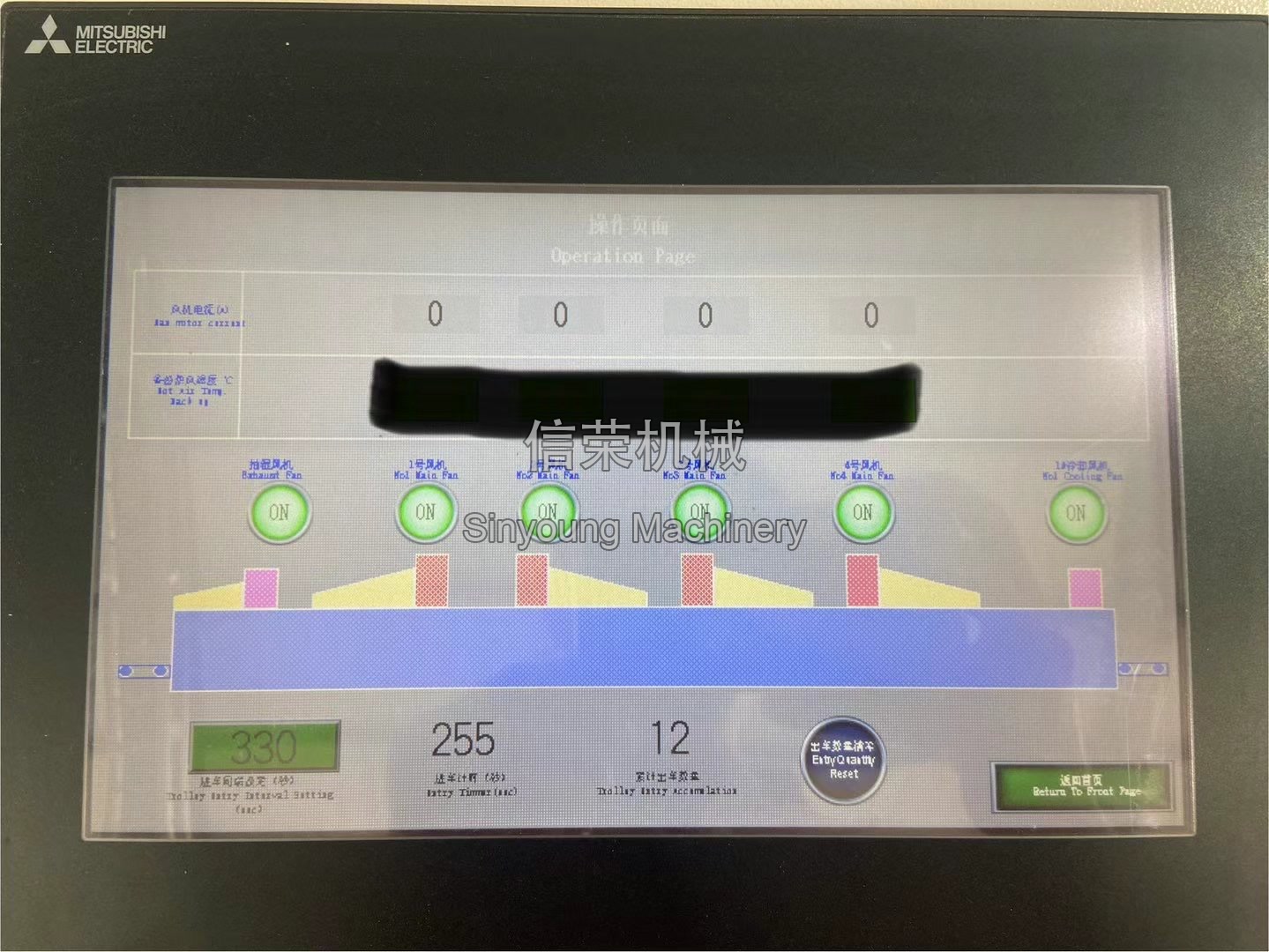

330 s per trolleyTrolley Interval for Both Lines

5.24 t/hActual Capacity

Project context

Project Scope and Feedstock Conditions

The project processes cup lump with approximately 30%–40% moisture. Sinyoung supplied feedstock preparation, wet breaking and mechanical dewatering, two-stage creping and granulation, four-hotspot drying equipment, and dual-chamber baling presses as an integrated TSR production system.

Related machinery for this project: TSR 10/20 natural rubber processing machinery and production line.

Project location:San-Pédro, Côte d’Ivoire
Project timeline:Started Aug 2023 | Installed Apr–Sep 2024 | Commissioned Oct 2024

Sinyoung scope

Sinyoung Equipment Scope

Preparation wet prebreaker: prepares incoming feedstock.
Wet prebreaker: breaks, kneads, and mechanically dewaters rubber.
Creper and shredder: provide two-stage creping and granulation to form uniform crumbs suitable for drying.

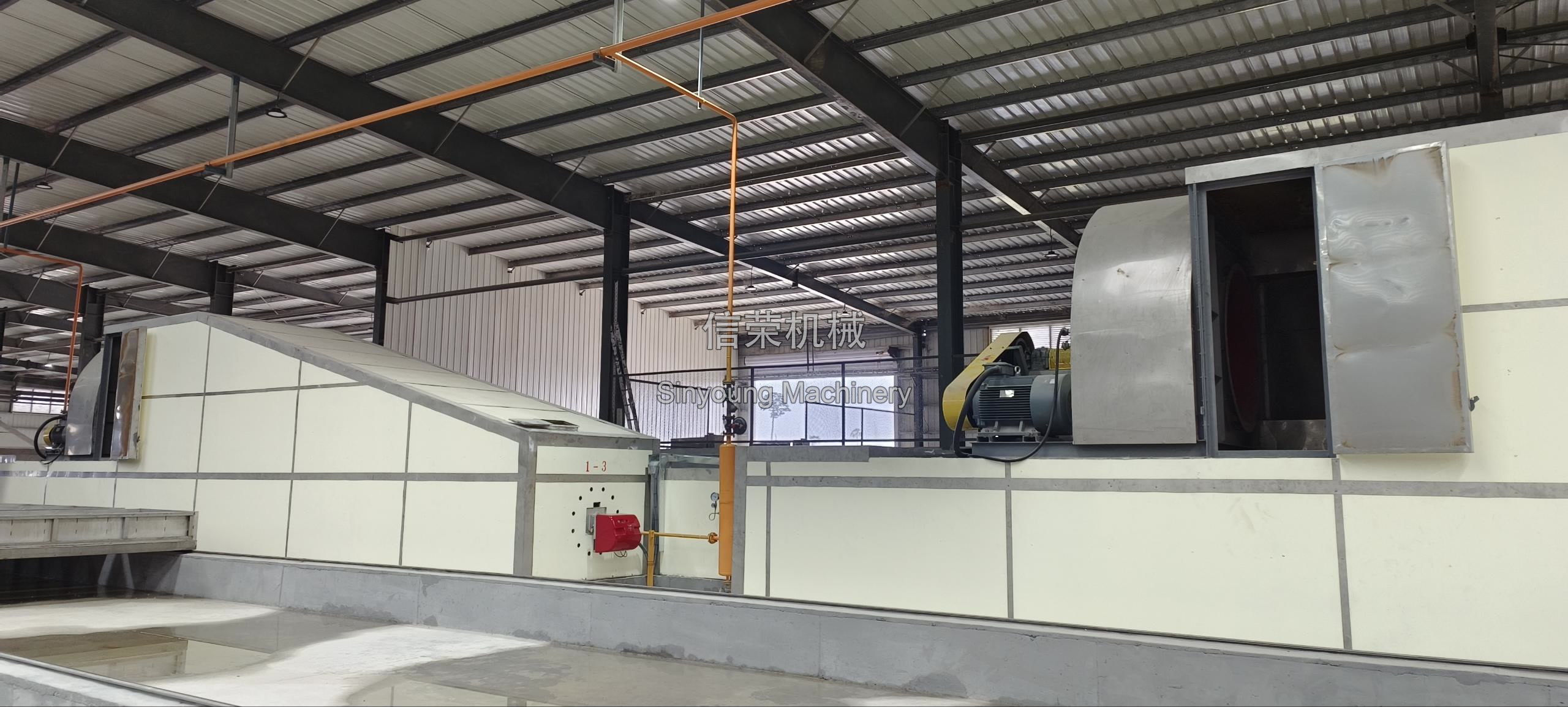

Four-hotspot drying equipment: dries rubber crumbs.
Dual-chamber baling press: compresses dried rubber into standard bales.

Project results
