Project case

Meilan Group Côte d’Ivoire Plant 4 Natural Rubber Line Project

Zagné, Côte d’Ivoire

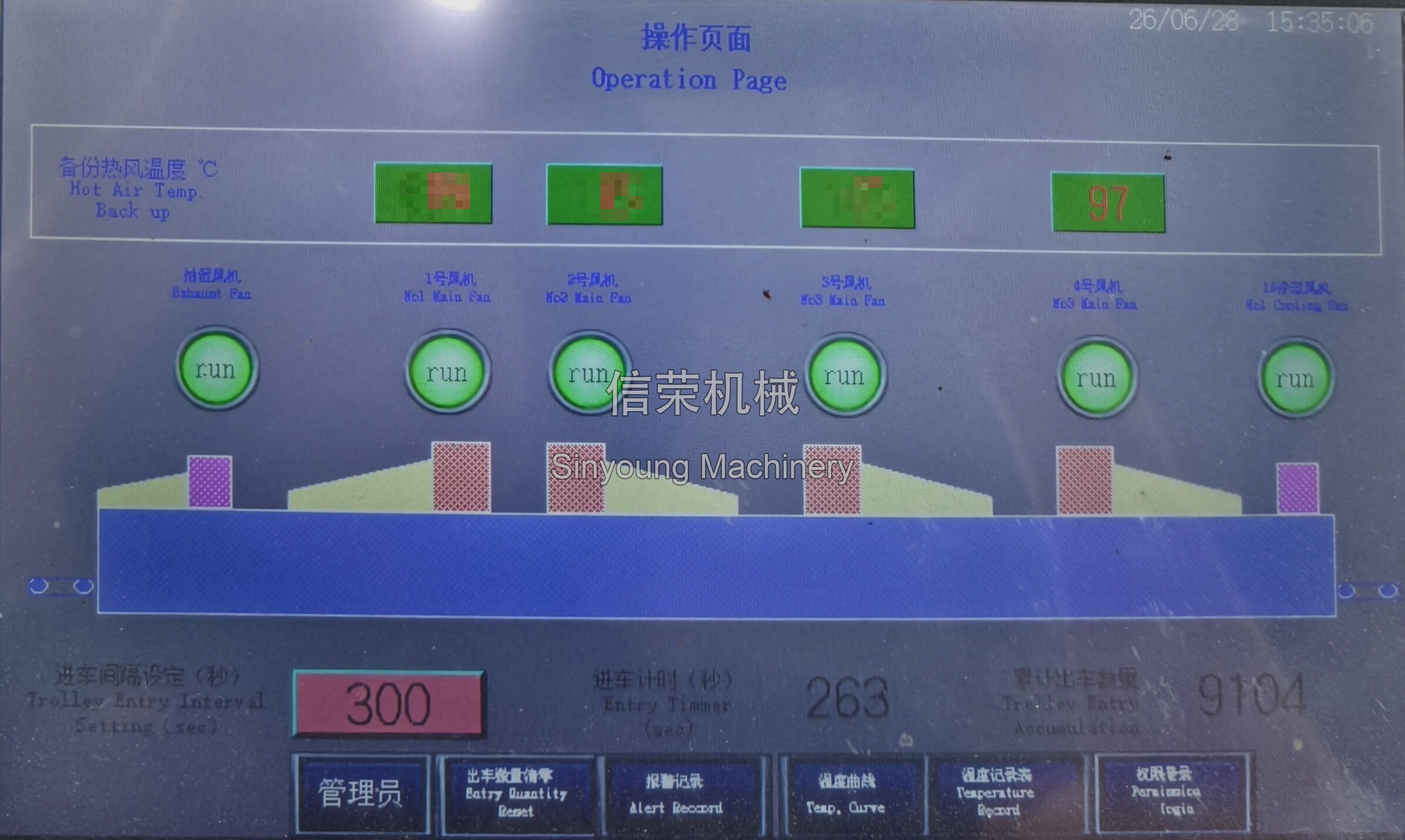

The trolley interval is 300 seconds, with actual capacity reaching 5.76 t/h.

Meilan Group Côte d’Ivoire Plant 4 Natural Rubber Line Project

1 lineComplete TSR Lines

5 t/hDesign Capacity

300 s per trolleyTrolley Interval

5.76 t/hActual Capacity

Project context

Project Scope and Feedstock Conditions

For high-moisture cup lump, wet kneading, two-stage creping, two-stage granulation, and drying improve continuous feeding, crumb form, and drying conditions.

Project location:Zagné, Côte d’Ivoire

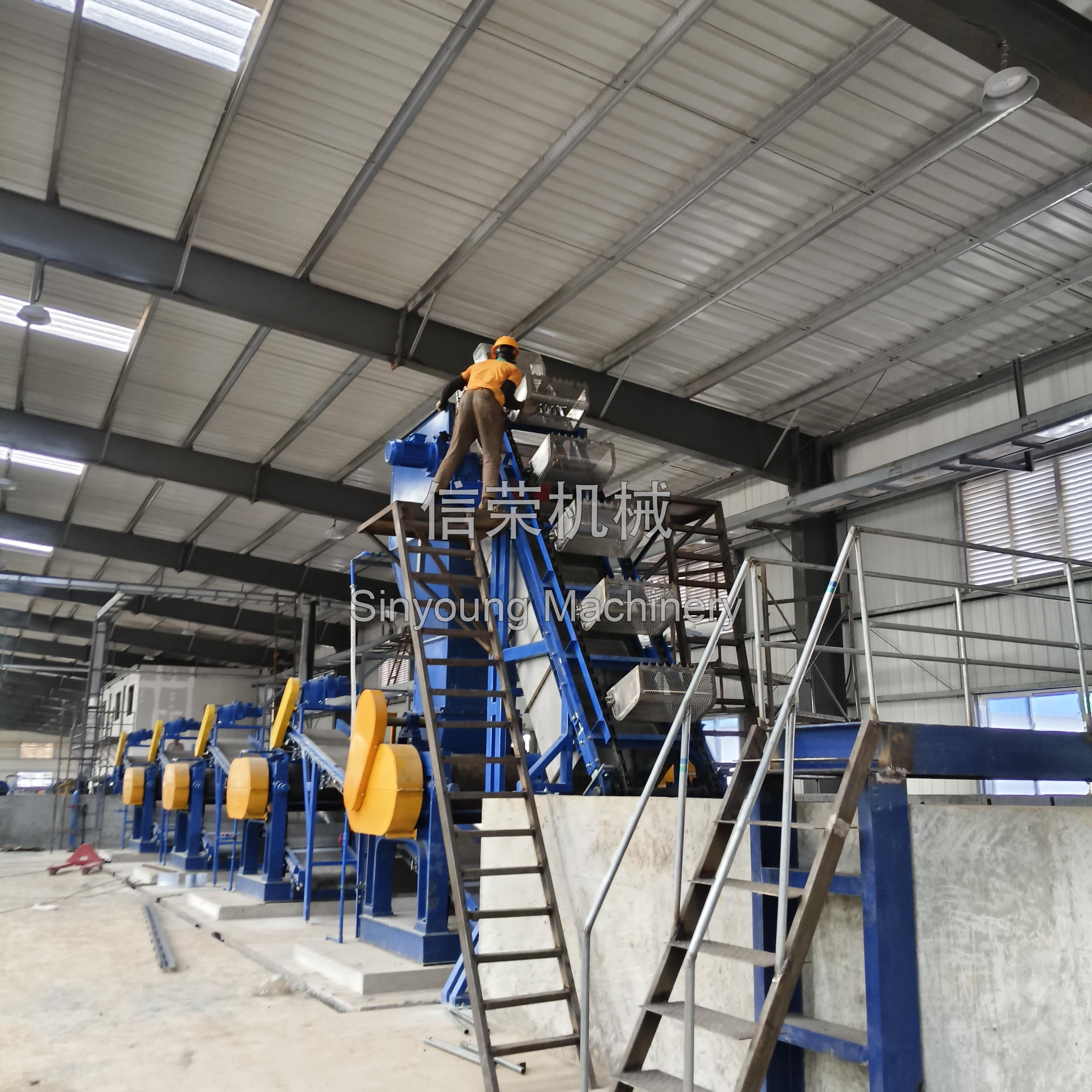

Project timeline:Started Jan 2025 | Installed Jul–Oct 2025 | Commissioned Dec 2025

Sinyoung scope

Sinyoung Equipment Scope

Wet prebreaker: breaks, kneads, and mechanically dewaters rubber.
Creper: provides second-stage creping with variable-frequency speed coordination.
Shredder: provides second-stage granulation to form uniform crumbs suitable for drying.

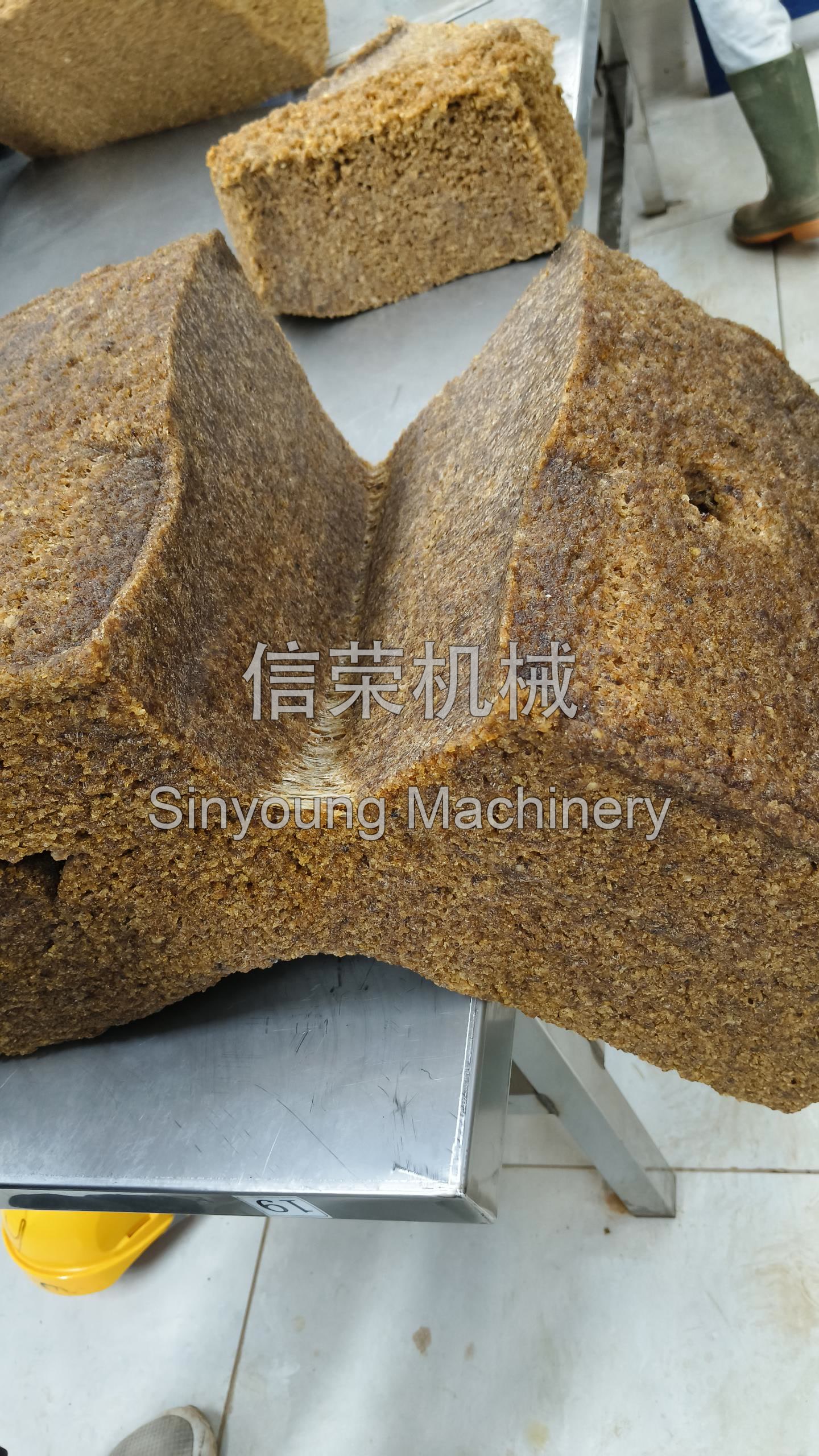

Four-hotspot drying equipment: dries rubber crumbs.

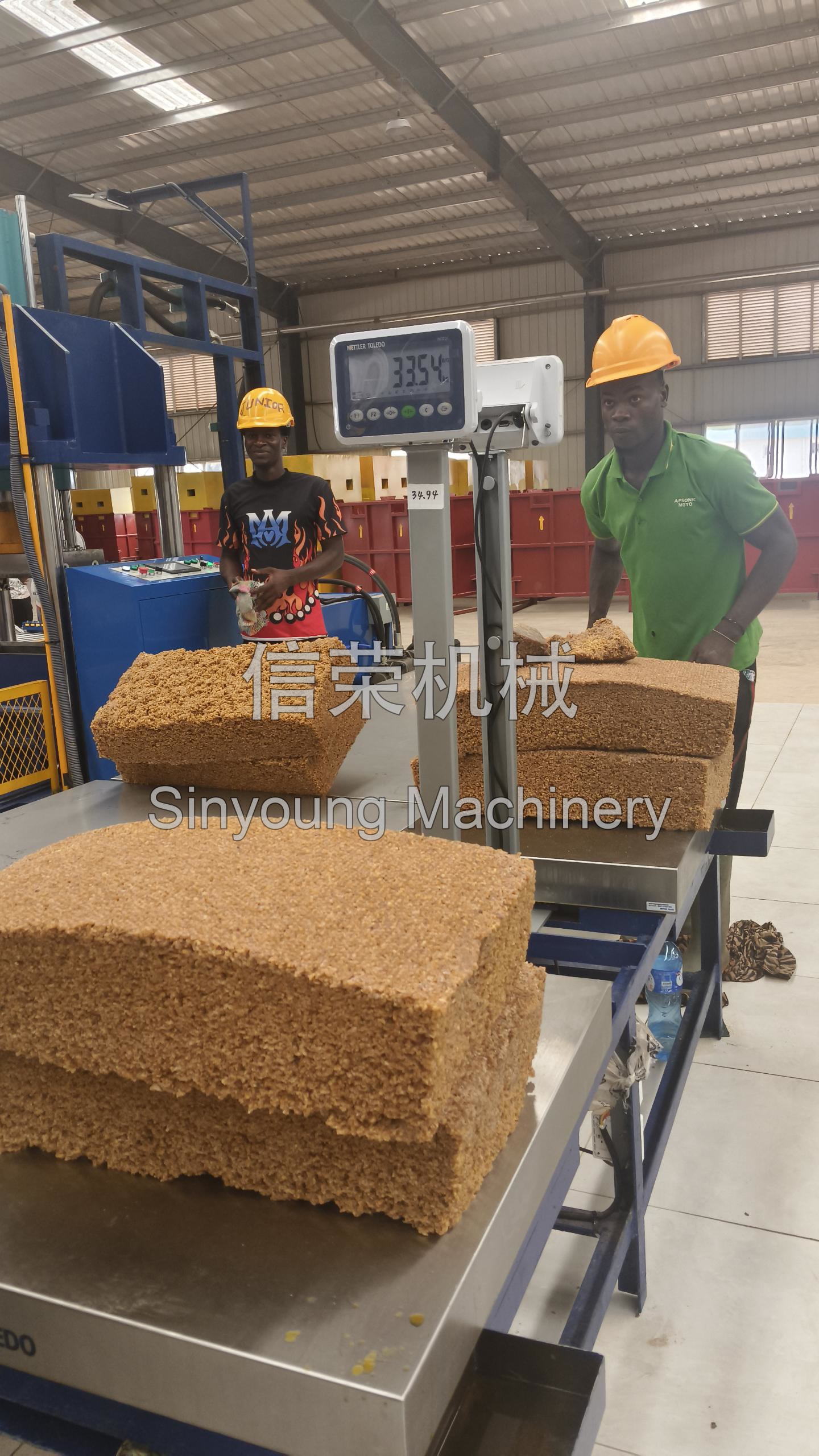

Dual-chamber baling press: compresses dried rubber into standard bales.

Project results
