Home / Project Cases / Côte d’Ivoire Plant 5

Project case

Mainland Group Côte d’Ivoire Plant 5 Natural Rubber Line Project

Guéyo, Lôh-Djiboua, Côte d’Ivoire

Mainland Group Plant 5 in Guéyo uses one complete Sinyoung TSR 10/20 natural rubber production line. The line operates at a 280-second trolley interval, with actual capacity reaching 6.2 t/h.

Mainland Group Côte d’Ivoire Plant 5 Natural Rubber Line Project
1 lineComplete TSR Lines
5 t/hDesign Capacity
280 s per trolleyTrolley Interval
6.2 t/hActual Capacity

Project context

Project Scope and Feedstock Conditions

The project is configured for high-moisture cup lump stored for extended periods. Multi-stage wet breaking and kneading, creping, granulation, trolley filling, controlled drying, and baling improve dewatering and maintain the documented production rate.

Related machinery for this project: TSR 10/20 natural rubber processing machinery and production line.

Project location:Guéyo, Lôh-Djiboua, Côte d’Ivoire
Project timeline:Started Apr 2025 | Installed Oct 2025–Feb 2026

Sinyoung scope

Sinyoung Equipment Scope

  • Wet prebreaker: breaks, kneads, and mechanically dewaters rubber.
  • Creper: provides second-stage creping to improve dewatering.
  • Shredder: provides second-stage granulation for fine, uniformly sized crumbs.
  • Four-hotspot drying equipment: dries rubber crumbs.
  • Dual-chamber baling press: compresses dried rubber into standard bales.

Project results

Project Parameters and Calculation

The trolley interval is 280 seconds, with actual capacity reaching 6.2 t/h.

Trolley Interval: 280 s/trolley；Actual Capacity 6.2 t/h

Project media

On-Site Images and Video

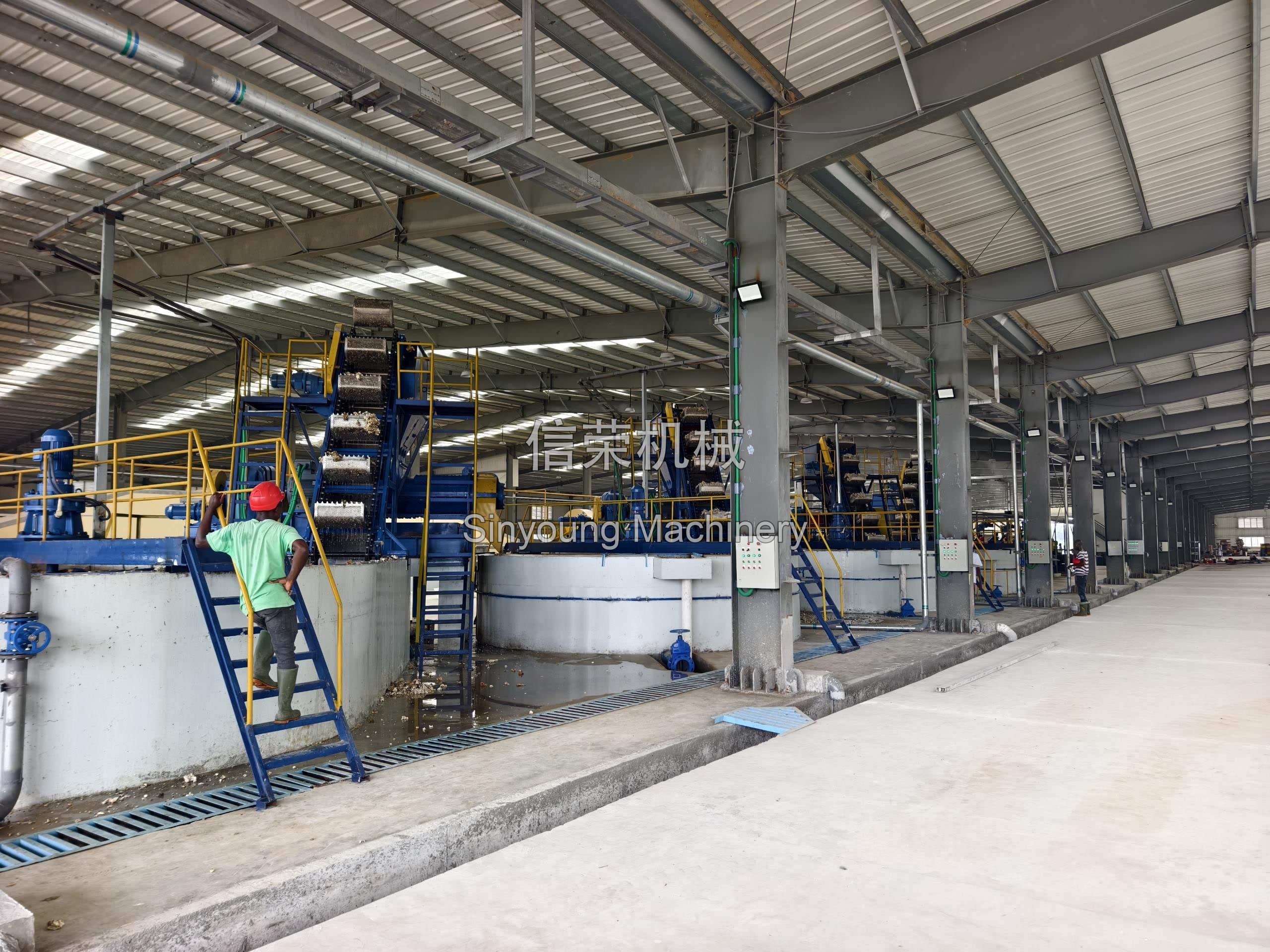

Production Line
Production Line

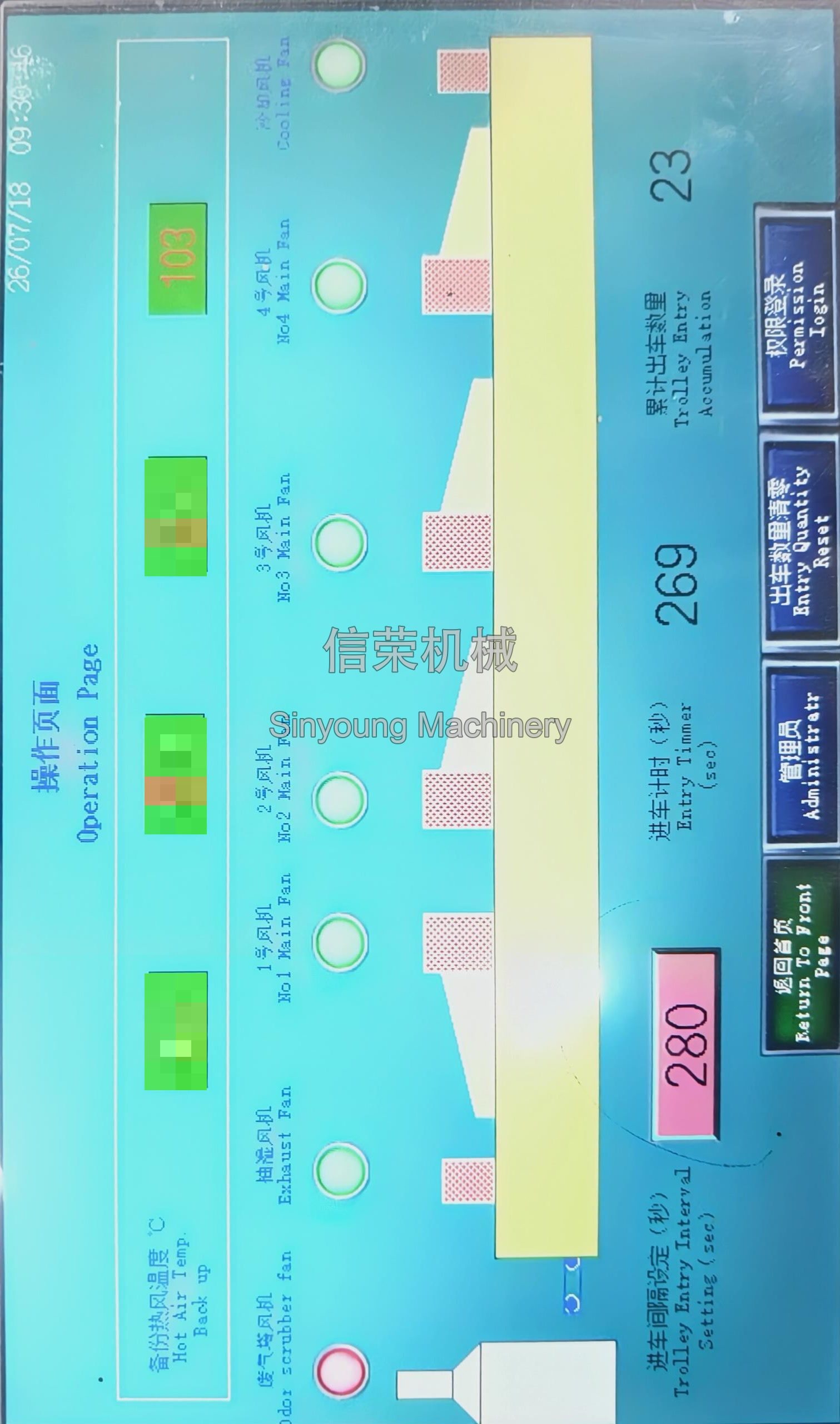

Drying-line operating parameter: 280-second trolley interval
Drying-line operating parameter: 280-second trolley interval

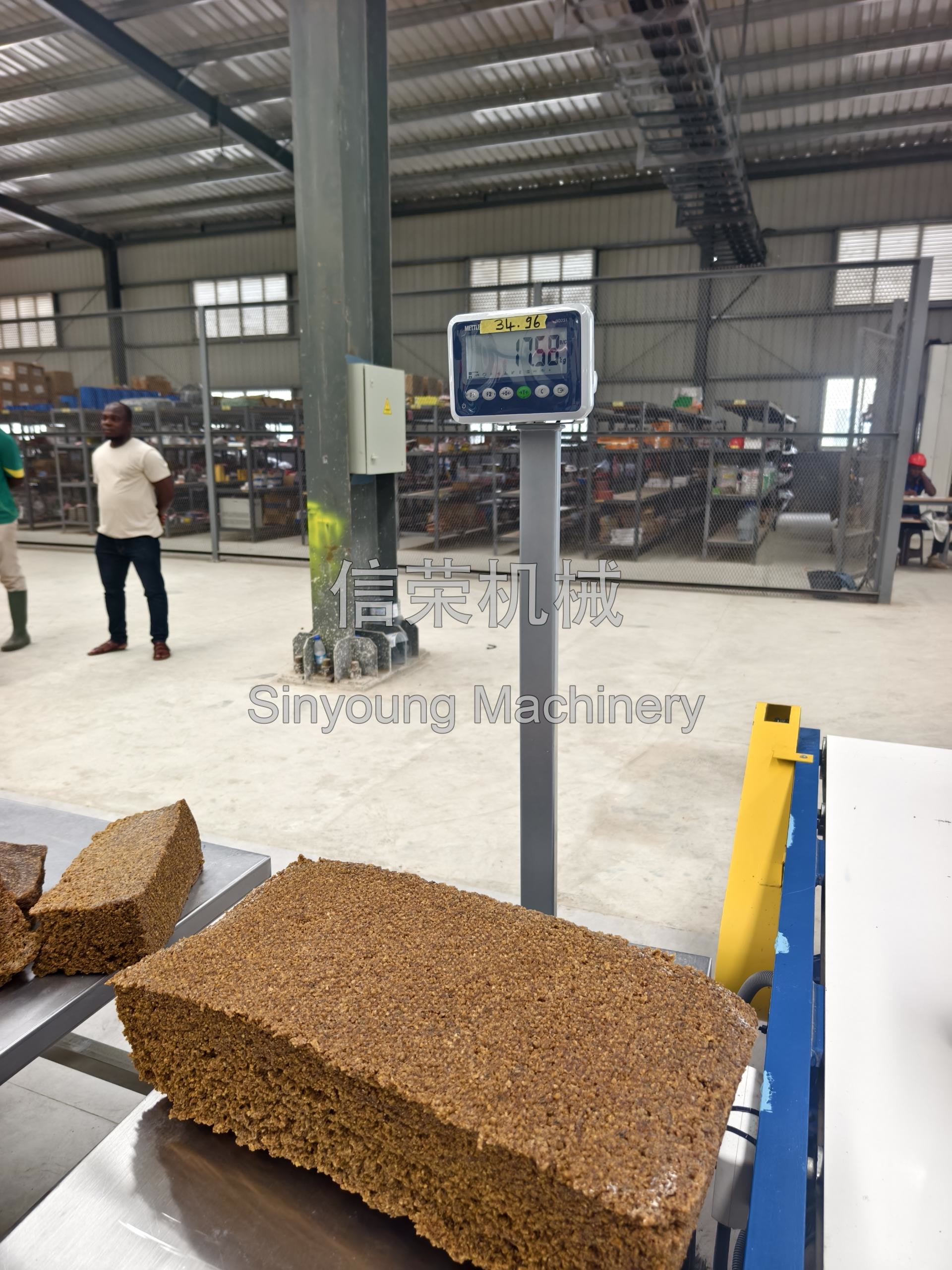

Representative Single-Bale Weight
Representative Single-Bale Weight

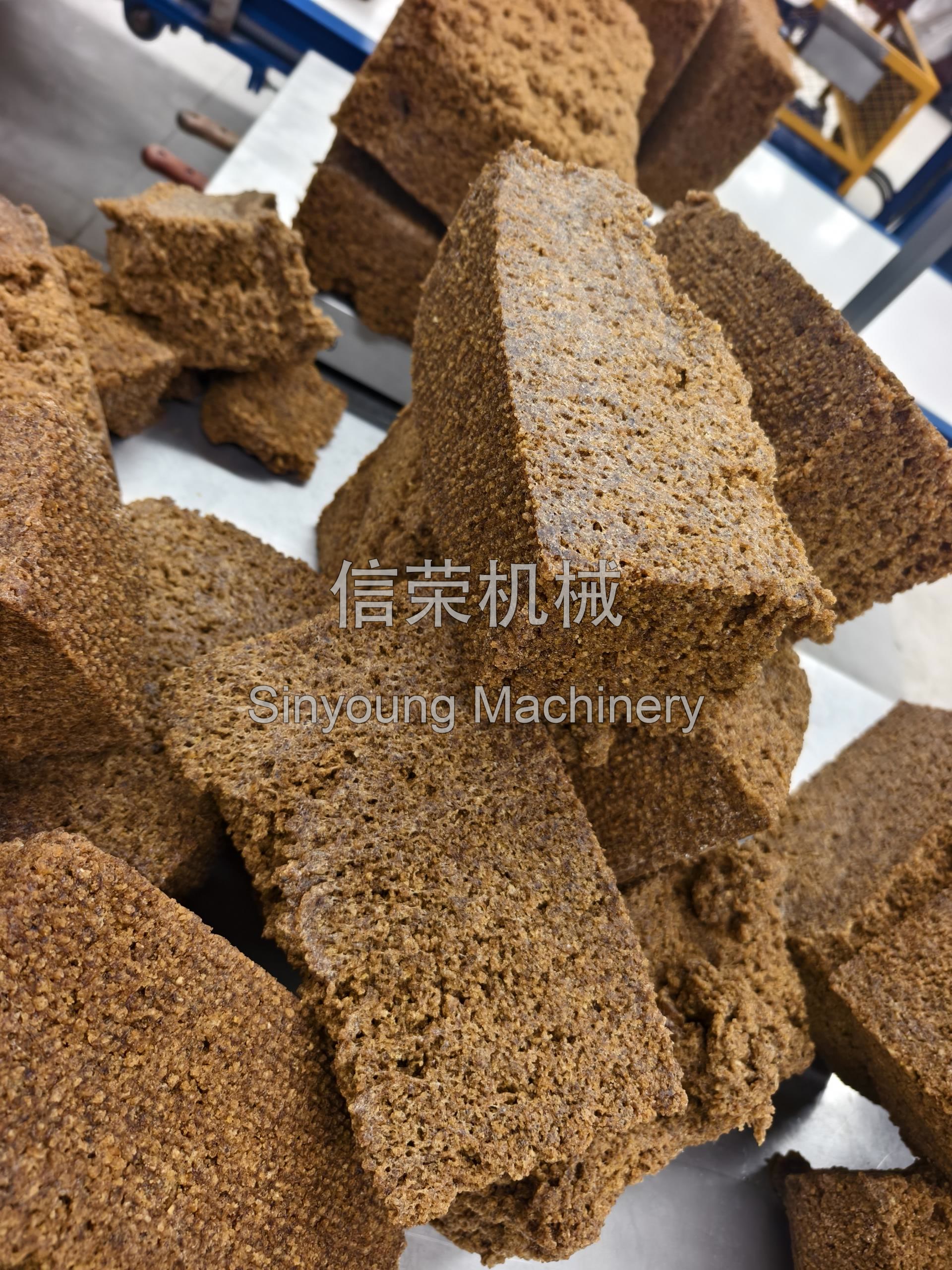

Cut-Bale Inspection with No Underdried White Spots
Cut-Bale Inspection with No Underdried White Spots
On-Site Production Video

Equipment Featured in This Case

TSR 10/20 Natural Rubber Production LineBack to Project Cases
